D-ES300

Direct-drive servo transmission technology, can realize punching, forming, rolling fabrication
High Speed & high compatibility
Energy-saving, average power consumption is 4.5kw/h
Mechanical transmission and electrical, pneumatic component are imported brands
The following is an introduction to D-ES300, I hope to help you better understand it.

Direct-drive servo transmission technology, can realize punching, forming, rolling fabrication
High Speed & high compatibility
Energy-saving, average power consumption is 4.5kw/h
Mechanical transmission and electrical, pneumatic component are imported brands

GENERAL INFORMATION

D-ES300

Main transmission adopts direct drive servo motor, which retains the advantage of simple and reliable structure as mechanical transmission, at the same time, servo transmission has a better performance than hydraulic transmission. ES300 series punch press has the characteristics of high-efficiency, energy-saving, low-noise, high-accuracy, and can realize many processes like cutting, forming, rolling, lettering and so on.
The punching force is 300KN, the max. sheet size can be fabricated is 5000x1250mm (with one re-positioning), five-axis machining (X, Y, T, C, A). The core of the Windows operating system and CNCKAD application. CAD two-dimensional graphics programming; Batch drag and drop processing of files in DXF, DWG or IGES format, direct nesting
Servo system- Japan Panasonic AC servo motor and servo amplifier unit; Punching power-Nanjing ESTUN all electric servo motor; Adopt O-frame steel frame welding frame; line guider and ball screw choose Germany REXROTH or Taiwan HIWIN.

Stable Performance

Unique design of high-rigid machine body, international standard tempering treatment after welding.

Energy-saving & High Efficiency

The main punching power adopts full electro-servo motor technology, average power consumption is 4.5KWH

360º Tool Rotation / Auto-index

With auto-index working station, you can punch at whatever angle you like.

Rolling Technology

One of the biggest advatage of servo punching head is the adjustable punching stroke. The punching head can stop at any position. You have have a pefect 360º rib and offset with rolling tools.

O-FRAME

Holistic welding structure.
Stress relief from tempering treatment.

SERVO PUNCHING SOURCE

Stroke Holding Function
Sealed oil tank type, good lubrication, low heat generation.

HIGH ACCURACY TURRET

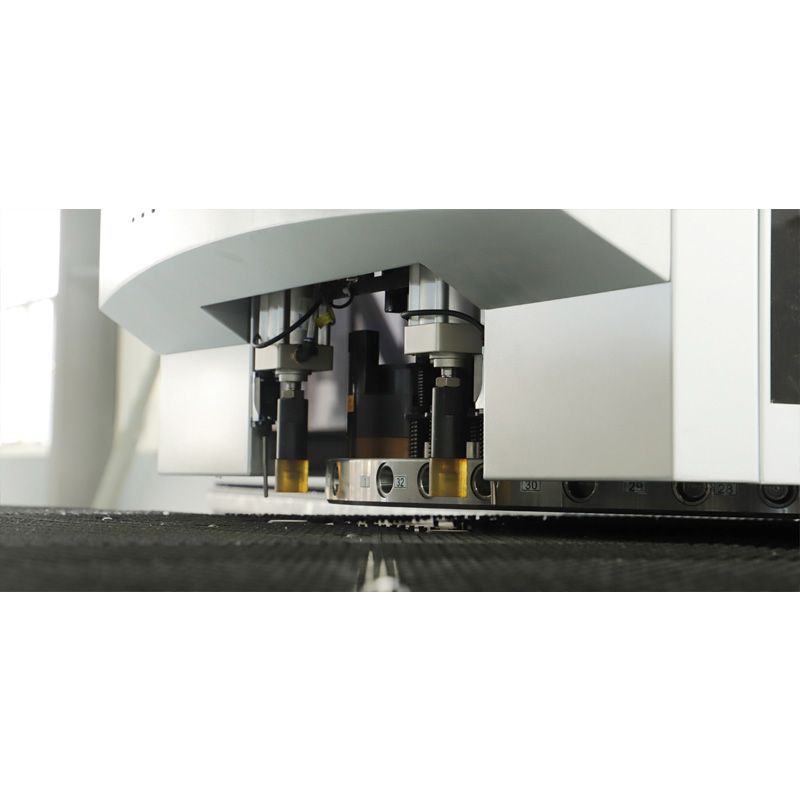

All turrets are manufactured by MAZAK 5 axes

RE-POSITIONING

Max. sheet size 5000mm in Length with one re-positioing. It makes the none dead zone on the sheet.

AUTO LUBRICANT

Automated lubricant system is maintenance free and makes the longer servicing life.

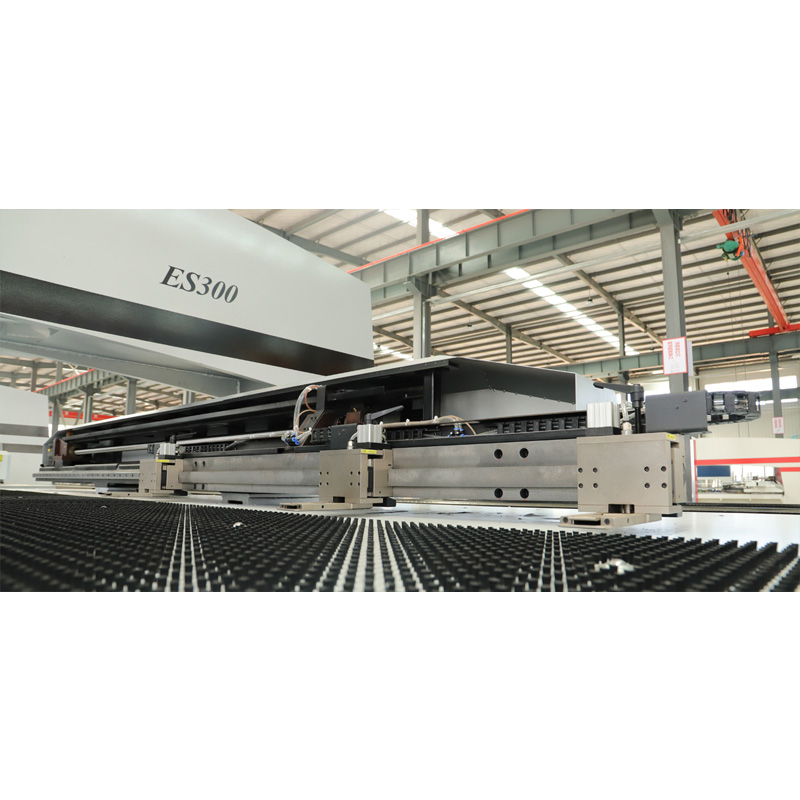

PNEUMATIC FLOAT-ABLE CLAMPS

The self-protection function.
Automated float-down when clamping.
Automatic unloading when the clamp returns.

	D-ES300 Standard Format	D-ES300 Large Format
TRANSMISSION METHOD	ALL ELECTRICAL SERVO	ALL ELECTRICAL SERVO
PUNCHING CAPACITY	30 ton	30 ton
MAX. HIT RATE
PUNCHING (PITCH=1MM)	900 HPM	900 HPM
PUNCHING (PITCH=25.4MM)	500 HPM	500 HPM
MARKING	1500 HPM	1500 HPM
WORKING RANGE
X AXIS	5000 mm	5000 mm
Y AXIS	1250 mm	1500 / 2000 mm
MAX. SHEET THICKNESS	6.35 mm	6.35 mm
MAX. WORKPIECE WEIGHT	150 kg	150 kg
TOOL & TURRET
NUMBER OF TOOLS/CLAMPS	32/3	32/3
AUTO-INDEX	2 B (dia <31.7mm)	2 B (dia <31.7mm)
STANDARD TURRET LAYOUT	16A 10B 2BC 2C 2D	16A 10B 2BC 2C 2D
MOVING SPEED
X AIXS	80 m/min	80 m/min
Y AXIS	80 m/min	80 m/min
X Y COMBINED	110 m/min	110 m/min
T AXIS	30 RPM	30 RPM
C AXIS	40 RPM	40 RPM
DIMENSIONS
LENGTH	5170 mm	5670 / 6670 mm
WIDTH	5200 mm	5200 mm
HEIGHT	2300 mm	2300 mm
AVERAGE POWER CONSUMPTION DURING PRODUCTION	4.5 kW	4.5 kW

* All specifications are subject to change without notice.
