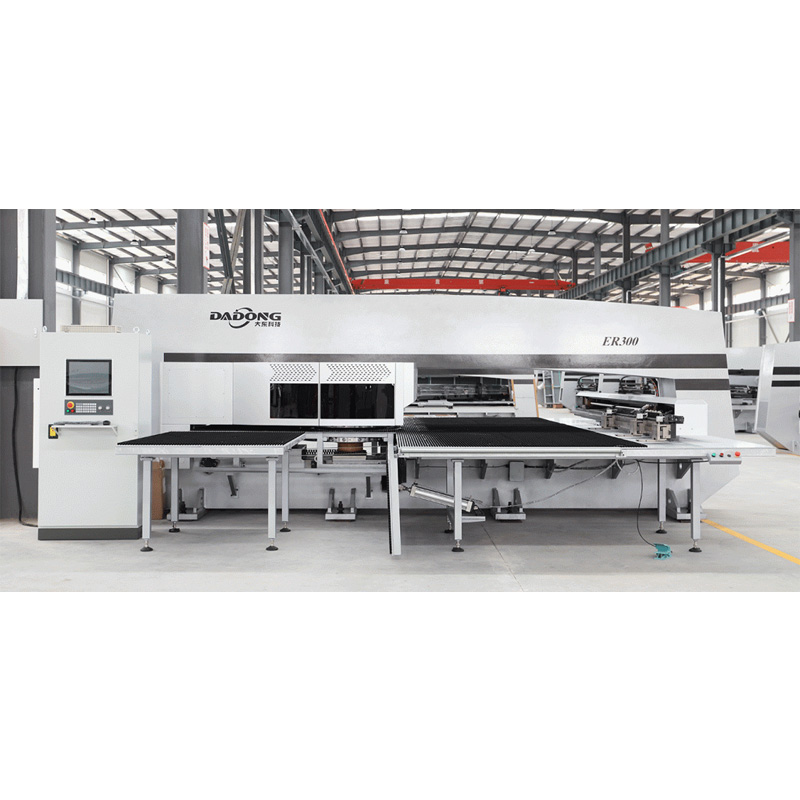

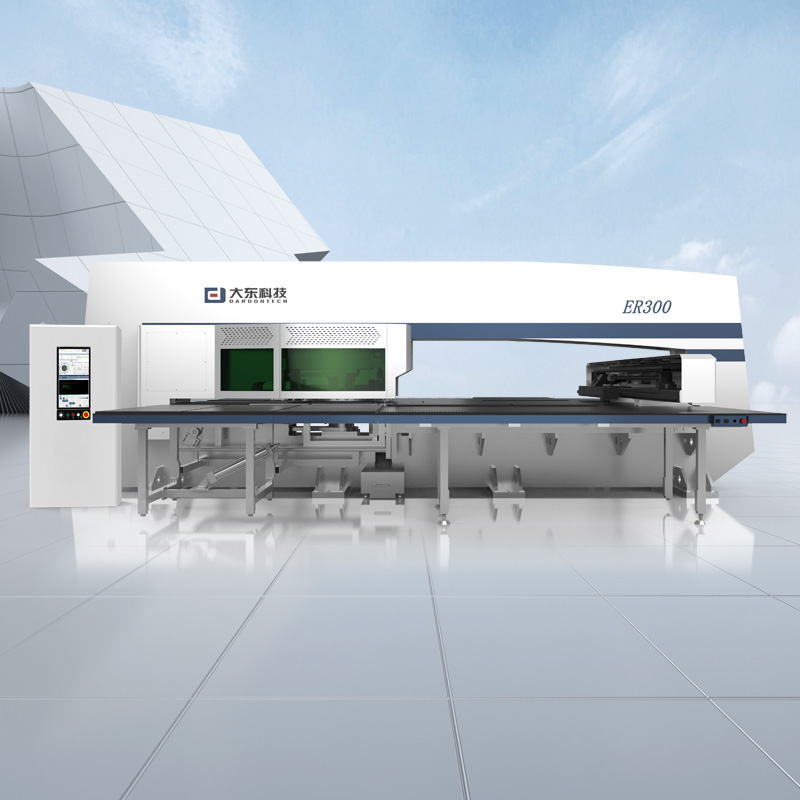

FACADE MACHINE

Latest electro-servo transmission technology, can realize punching, forming, rolling fabrication
Deep-throat: 1500mm/2000mm
Best selling for Chinese Facade Industry
Flexible manufacturing choice
The following is an introduction to FACADE MACHINE, I hope to help you better understand it.

Send Inquiry

Send email to us

Product Description
Technical Details
Technical Data

FACADE MACHINE

Latest electro-servo transmission technology, can realize punching, forming, rolling fabrication
Deep-throat: 1500mm/2000mm
Best selling for Chinese Facade Industry
Flexible manufacturing choice

Hot Tags: FACADE MACHINE, Manufacturers, Suppliers, Factory, China, Quality

Product Tag

Related Categories

FULL SERVO ELECTRO

MECHANICAL FLYWHEEL

HEAVY DUTY MACHINE

Send Inquiry

Please feel free to fill your inquiry in the form below. We will reply you in 24 hours.

	D-ER300-20	D-ES300-20
TRANSMISSION METHOD	ALL ELECTRICAL SERVO	ALL ELECTRICAL SERVO
PUNCHING CAPACITY	30 ton	30 ton
MAX. HIT RATE
PUNCHING (PITCH=1MM)	950 HPM	900 HPM
PUNCHING (PITCH=25.4MM)	580 HPM	500 HPM
MARKING	1800 HPM	1500 HPM
WORKING RANGE
X AXIS	5000 mm	5000 mm
Y AXIS	2000 mm	2000 / 2000 mm
MAX. SHEET THICKNESS	6.35 mm	6.35 mm
MAX. WORKPIECE WEIGHT	150 kg	150 kg
TOOL & TURRET (can be customized)
NUMBER OF TOOLS/CLAMPS	32/3	32/3
AUTO-INDEX	2 B (dia <31.7mm)	2 B (dia <31.7mm)
STANDARD TURRET LAYOUT	16A 10B 2BC 2C 2D	16A 10B 2BC 2C 2D
MOVING SPEED
X AIXS	80 m/min	80 m/min
Y AXIS	80 m/min	80 m/min
X Y COMBINED	110 m/min	110 m/min
T AXIS	30 RPM	30 RPM
C AXIS	40 RPM	40 RPM
DIMENSIONS
LENGTH	6670 mm	6670 mm
WIDTH	5200 mm	5200 mm
HEIGHT	2300 mm	2300 mm
AVERAGE POWER CONSUMPTION DURING PRODUCTION	4-5 kW	4-5 kW
