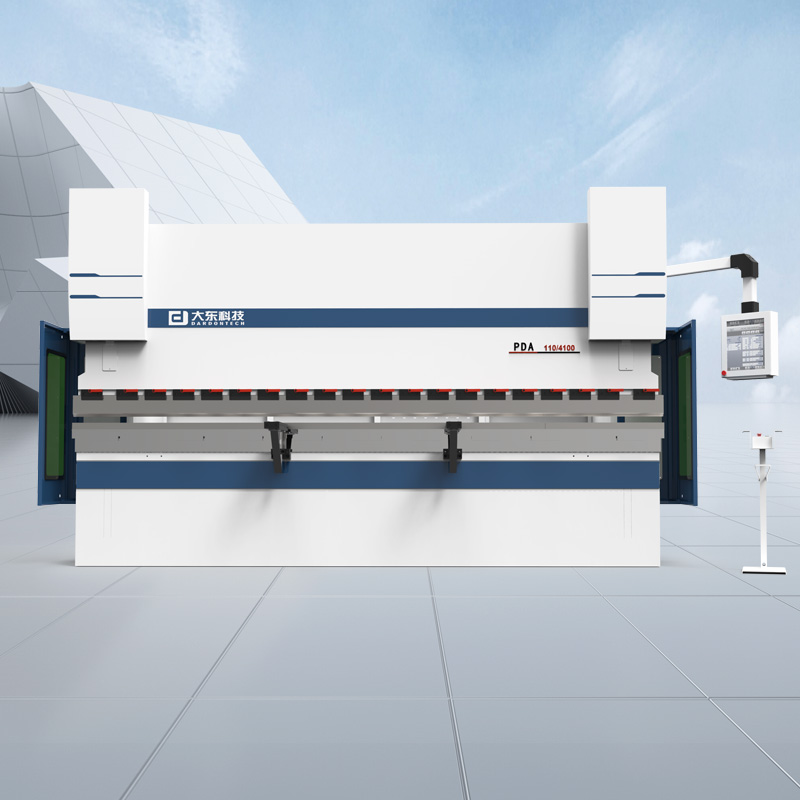

PDA SERIES

Holistic welding Structure
Double crowning mechanism
Electro一hydraulic servo system
CLosed一 loop slider synchronization control
Standard with CNC 4 + 1 axes:
Y1 , Y2
X , R , V

Model		Unit	PDA 40/ 1500	PDA 60/ 2000	PDA 80/ 2500	PDA 110/ 3200	PDA 110/ 4100	PDA 170/ 3200	PDA 170/ 4100	PDA 250/ 3200	PDA 250/ 4100	PDA 320/ 3200	PDA 320/ 4100
Nominal Force		KN	400	600	800	1100	1100	1700	1700	2500	2500	3200	3200
Bending Width		MM	1500	2000	2500	3200	4100	3200	4100	3200	4100	3200	4100
Column Distance		MM	1200	1700	2000	2700	3600	2700	3600	2700	3600	2700	3600
Open Height		MM	370	370	425	525	525	525	525	560	560	560	560
Throat Depth		MM	300	300	320	400	400	400	400	400	400	400	400
Cylinder Stroke		MM	160	160	160	250	250	250	250	300	300	300	300
Main Motor Power		KW	5.5	7.5	7.5	11	11	15	15	22	22	30	30
Oil Volume		L	140	160	180	280	280	280	280	420	420	420	420
Moving Speed	Approaching	MM/S	150	140	150	180	180	170	170	140	140	130	130
	Working	MM/S	15	15	12	10	10	10	10	8	8	7	7
	Returning	MM/S	150	140	110	140	140	120	120	105	105	100	100
LxWxH	Length	MM	2170	2670	2980	3700	4600	3720	4620	3740	4640	3760	4660
	Width	MM	1450	1360	1460	1665	1665	1740	1740	1940	1940	2100	2100
	Height	MM	2410	2410	2435	2625	2675	2675	2725	3060	3060	3240	3240
Weight		KG	3820	4710	5390	7790	9950	9870	11480	13600	15440	16540	18670
